Having learned the hard way, on-the-job, how not to form copper boiler plates forming the last boiler plate – the ThroatPlate was comparatively easy.

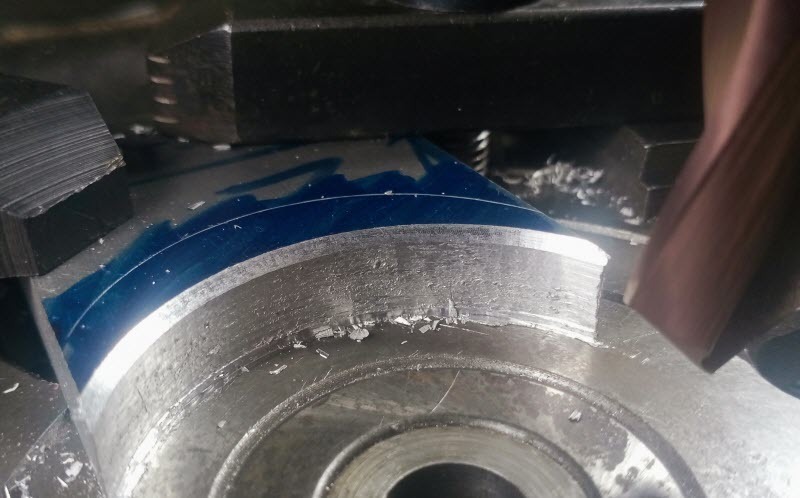

The first job was to make the former, this time machined from aluminium.
The photo below shows the ‘brute-force’ method of flange-forming the ThroatPlate for the boiler. The copper sheet is squeezed in the bench vice jaws between the aluminium former and an aluminium backing plate. The copper is formed using the round steel disk as a dolly under heavy blows from the 3 1/2 lb hammer.
Forming The ThroatPlate Method
The Gallery below shows the various stages of forming the ThroatPlate – not necessarily on chronological order, but you’ll get the idea. Of course the copper sheet was repeatedly annealed.
Trimming The ThroatPlate Edges To Size
The next photo displays the finished ThroatPlate fitted up to the Boiler.
01-250410-The-Finished-ThroatPlate
